Large Element Presses Paving
Used by Local Authorities, Construction Companies, Specifiers and Landscapers who are looking for slabs that measure up to precise British Standards guaranteeing quality control and the highest manufacturing capabilities.
Gryphonn Concrete Products range of BS Quality Paving Slabs are manufactured using materials that endow the products with excellent slip resistance and a surface skid resistance exceeding 70. In addition to the standard range shown below, we are able to produce certain slabs with thickness ranging from 40mm to 150mm thick to special order.

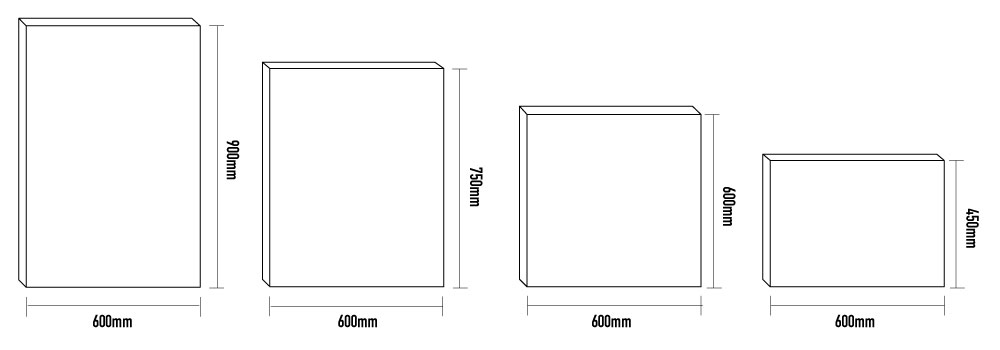

| DIMENSIONS (MM) | WEIGHT / SLAB | SLABS / PACK | WEIGHT / PACK | No / m2 |
|---|---|---|---|---|
| 900 x 600 x 50* | 60kg | 20 | 1200kg | 1.85 |
| 900 x 600 x 63* | 77kg | 16 | 1232kg | 1.85 |
| 750 x 600 x 50* | 50kg | 20 | 1000kg | 2.2 |
| 750 x 600 x 63* | 63kg | 16 | 1008kg | 2.2 |
| 600 x 600 x 50 | 40kg | 20 | 800kg | 2.8 |
| 600 x 600 x 63 | 52kg | 16 | 832kg | 2.8 |
*Slabs available up to 150mm thick
The standard colour available is Natural Grey. Other colours including Tuscan Red, Cotswold Buff, Charcoal and Brindle finishes are available to special order as are slabs using customers specified material.
Small Element Pressed Paving
Small Element Paving Slabs combine the benefits of superior visual appearance, high load bearing capabilities and durability to provide the user and specifier with a paving system that is quite able to integrate pedestrian areas with buildings and landscape areas, whilst retaining a surface finish which gives opportunity for interesting laying patterns, surface finishes and colour mixes as an alternative to tarmacadam and a cost effective price.
Small Element Paving can be obtained with either the standard 5mm 45 degree chamfered edge or with a plain square edge. All slabs are manufactured to incorporate spacer nibs.
| DIMENSIONS (MM) | WEIGHT / SLAB | SLABS / PACK | WEIGHT / PACK | No / m2 |
|---|---|---|---|---|
| 450 x 450 x 50 | 23.5kg | 20 | 470kg | 4.938 |
| 450 x 450 x 70 | 33.0kg | 16 | 528kg | 4.938 |
| 400 x 400 x 50* | 18.5kg | 20 | 370kg | 6.25 |
| 400 x 400 x 65* | 24.0kg | 16 | 384kg | 6.25 |
| 300 x 300 x 50 | 10.5kg | 20 | 210kg | 11.111 |
| 300 x 300 x 60 | 12.5kg | 17 | 213kg | 11.111 |
| 450 x 300 x 50 | 15.7kg | 20 | 314kg | 7.407 |
| 450 x 300 x 60 | 18.8kg | 17 | 320kg | 7.407 |
*Slabs available up to 150mm thick
The standard colour available is Natural Grey. Other colours including Tuscan Red, Cotswold Buff, Charcoal and Brindle finishes are available to special order as are slabs using customers specified material.
